Rotary Coolant Adapter

Rotary Coolant Adapter (RCA) was developed for the modern cutting tools which have coolant capability. The spindles of the old machine do not provide the facility to transfer coolant through the tool, here a Rotary coolant adapter can be used to facilitate this and use the coolant tools for machining.

Read More
Rotary Coolant Adapter

Enquiry Form

Enquiry Now

Description

RCA can be used on both, the CNC machines with Automatic Tool Changer (ATC) as well as with the manual clamping system. Machining with a thorough coolant tool increases the tool life as well as provides a better surface finish.

BPTL provides two types of RCAs based on the front end clamping design:

  • 1. Collet Chuck type: In this system, ER/DA/TG collet system is used for clamping the tool.
  • 2. End Mill type: It is a positive locking system in which Weldon flat on the shank of the tool is held in place by the set screws.

BPTL provides RCA in tapers of BT (MAS403/JIS B 6339) or DV (DIN 69871). Maximum coolant pressure of 10 bar (150 psi) can be used in the BPTL RCA.


Advantages of Rotary Coolant Adapter

  • Balanced by design
  • Available in BT and DV shanks
  • Front end available in Collet chuck and End Mill type.

Our Other Products

Right Angle Head

Right Angle Head

Right Angle Head is used for doing the machining operation perpendicular to the axis of the machine spindle.

Read More

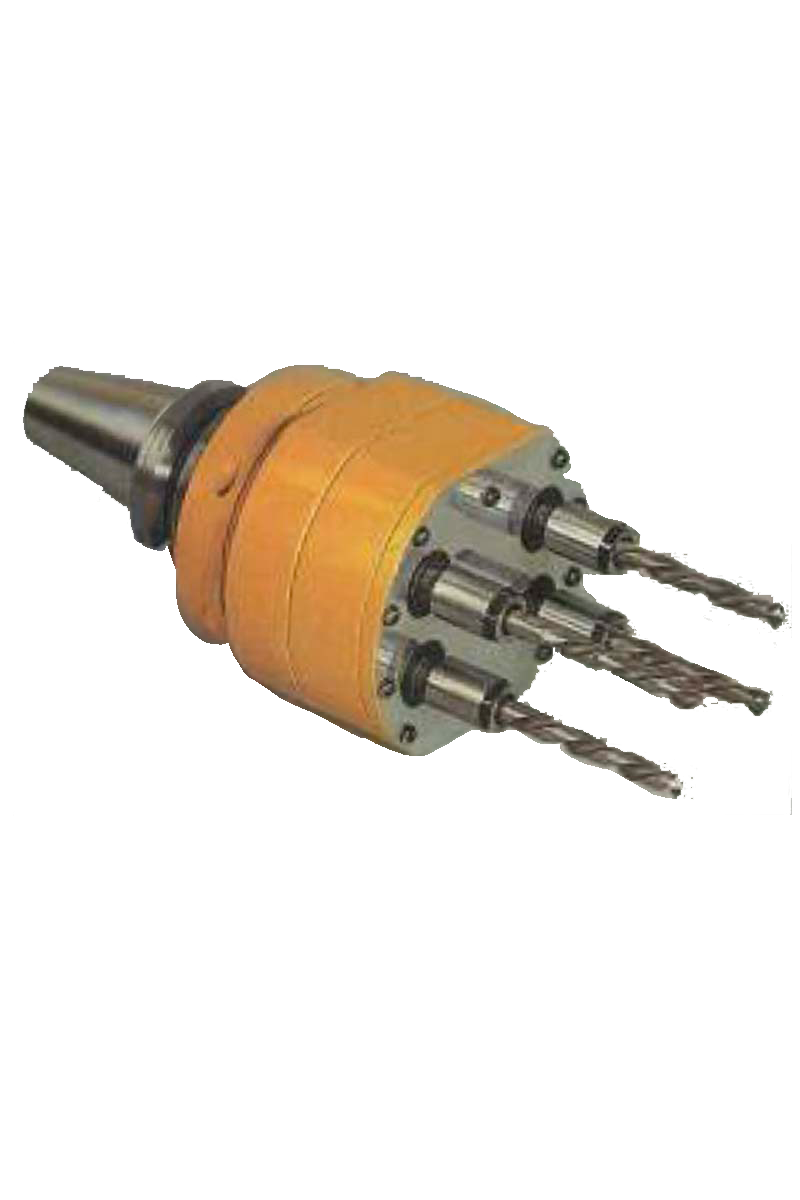

Multi Spindle Heads
