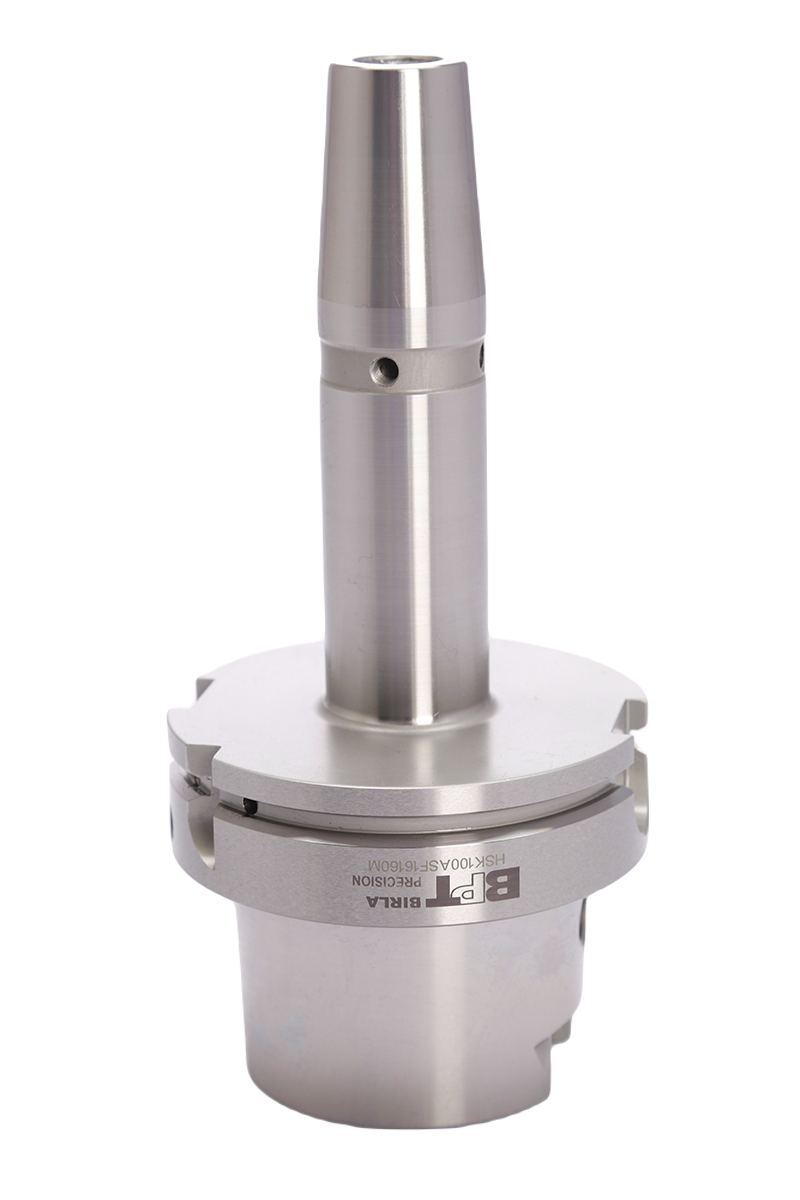

Extra Gauge Length Holder

Extra Gauge Length Holders by Birla Precision Technologies Ltd, provides the options of machining deep cavities and packets where standard gauge length would not reach.

Description

BPTL manufactures many standard tool holders with higher gauge lengths. We also customized the length as per the requirement of the customers. Extra Gauge Length Holder is available for various types of standard tool holders, which covers all 7/24 tapers such as BT (MAS403/JIS B 6339), DV (DIN 69871), CV (ANSI B5.50/ISO 7388), and Morse Taper, along with HSK (DIN 69893) BPTL Extra Gauge Length Holder is available in both metric and inches standards. Extra Gauge Length Holder is also available in the Dual taper contact design.

Advantages of Extra Gauge Length Holder

Balanced by design
Through tool coolant capability
Flange through coolant form B/AD available on request
Dynamically balanced to G6.3@ 15,000 rpm
G2.5@ 20,000 available on request

Our Other Products

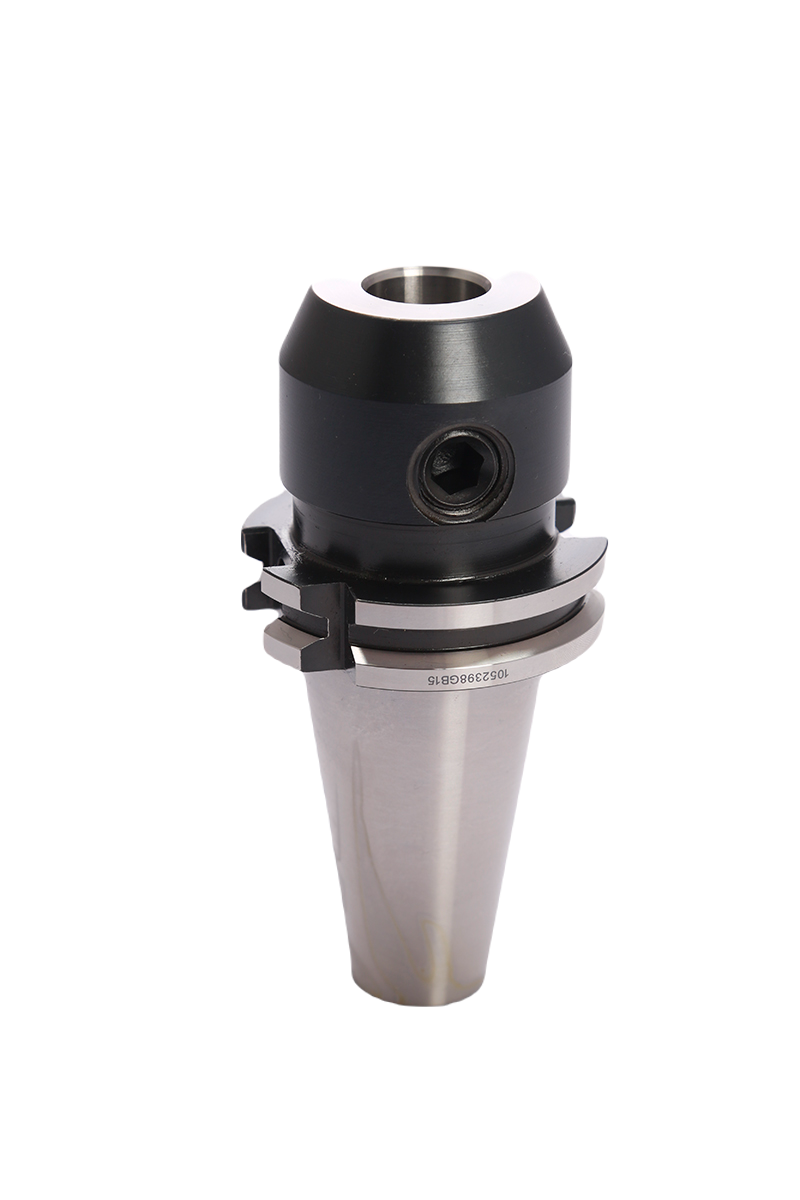

Stub Holder
