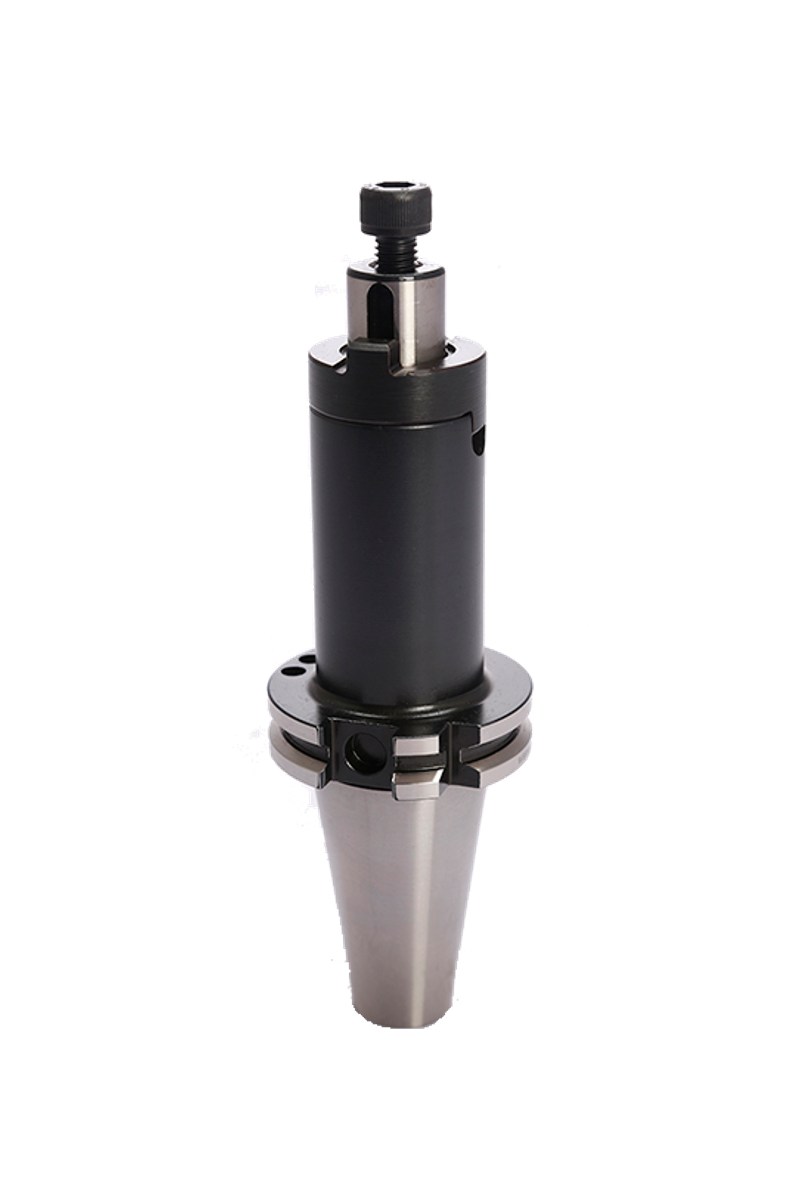

Combi Shell Mill Holder

The normal Shell mill holder has only a drive ring for power transmission, whereas the Combi Shell mill holder has a drive key and drive ring both for power transmission.

Description

BPTL also provides the Combi shell mill holders as the catalogue item. Shell mill holder can also be classified on the basis of mechanism used for power transmission.

BPTL provides the standard range of small face and large face type Shell mill holders as per the bore diameter of the tool. BPTL provides Shell mill holders in various tapers such as BT (MAS403/JIS B 6339), DV (DIN 69871), CV (ANSI B5.50/ISO 7388) and HSK (DIN 69893).

Advantages of Combi Shell Mill Holder

Balanced by design
Through tool coolant capability
Flange through coolant form B/AD available on request
Dynamically balanced to G6.3@ 15,000 rpm
G2.5@ 20,000 available on request

Our Other Products

Milling Holders

Milling Holders are used to hold cutters for milling applications. They provide quality face milling operations.

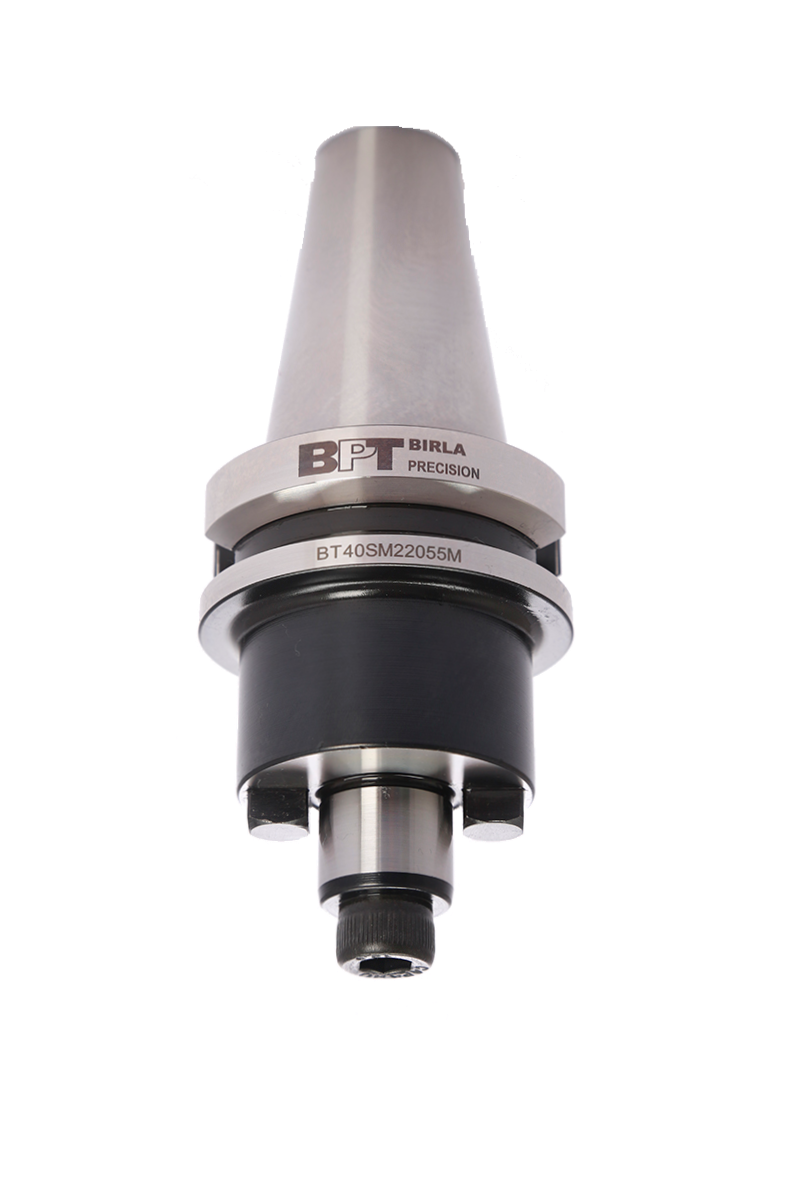

Shell Mill Holder
